ALL OF THESE PROPS ARE HAND CRAFTED AND HIGH QUALITY.  THEY ARE AVAILABLE IN ONLY M4, M5 THREADS.

STANDARD PROPS

This range is designed to suit a large number of types of models.  Standard Props are available in 2, 3, & 4 blade versions.

CODE #

DIAMETER

BLADE(S)

PRICE

SP-01

25 mm

2

SP-02

32 mm

2

SP-03

38 mm

2

SP-04

44 mm

2

SP-05

50 mm

2

SP-06

57 mm

2

SP-07

63 mm

2

SP-08

70 mm

2

SP-09

76 mm

2

SP-10

25 mm

3

SP-11

32 mm

3

SP-12

38 mm

3

SP-13

44 mm

3

SP-14

50 mm

3

SP-15

57 mm

3

SP-16

63 mm

3

SP-17

70 mm

3

SP-18

76 mm

3

SP-19

25 mm

4

SP-20

32 mm

4

SP-21

38 mm

4

SP-22

44 mm

4

SP-23

50 mm

4

SP-24

57 mm

4

SP-25

63 mm

4

SP-26

70 mm

4

SP-27

76 mm

4

NAVAL STYLE PROPS

This range is designed FOR WW II WARSHIPS.

CODE #

DIAMETER

BLADE(S)

PRICE

WW-01

25 mm

3

WW-02

32 mm

3

WW-03

38 mm

3

WW-04

44 mm

3

WW-05

50 mm

3

WW-06

57 mm

3

WW-07

63 mm

3

WW-08

25 mm

4

WW-09

32 mm

4

WW-10

38 mm

4

WW-11

44 mm

4

WW-12

50 mm

4

WW-13

57 mm

4

WW-14

63 mm

4

TYPE ‘M’ SERIES PROPS

This is a modern style prop suitable for warships or merchant ships.  Available with two Hub lengths: Long or Short.

CODE #

DIAMETER

BLADE(S)

PRICE

MP-01

32 mm

3

MP-02

38 mm

3

MP-03

44 mm

3

MP-04

50 mm

3

MP-05

57 mm

3

MP-06

63 mm

3

MP-07

70 mm

3

MP-08

76 mm

3

MP-09

32 mm

4

MP-10

38 mm

4

MP-11

44 mm

4

MP-12

50 mm

4

MP-13

57 mm

4

MP-14

63 mm

4

MP-15

70 mm

4

MP-16

76 mm

4

MP-17

32 mm

5

MP-18

38 mm

5

MP-19

44 mm

5

MP-20

50 mm

5

MP-21

57 mm

5

MP-22

63 mm

5

MP-23

70 mm

5

MP-24

76 mm

5

PROP SHAFTS

Stainless Steel Shafts 4 mm & 5 mm.  All Shafts have brass tubes and phosphor bronze bearings.

CODE #

DIAMETER

INCHES

PRICE

ST-04

102 mm

4”

ST-05

127 mm

5”

ST-06

152 mm

6”

ST-07

178 mm

7”

ST-08

203 mm

8”

ST-09

228 mm

9”

ST-10

254 mm

10”

ST-11

280 mm

11”

ST-12

305 mm

12”

ST-13

330 mm

13”

ST-14

355 mm

14”

ST-15

380 mm

15”

ST-16

406 mm

16”

ST-17

432 mm

17”

ST-18

457 mm

18”

ST-19

482 mm

19”

ST-20

508 mm

20”

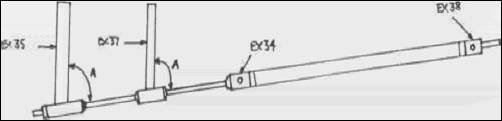

EXTENDED TYPE PROP SHAFTS

Stainless Steel Shafts 4 mm & 5 mm.  All Shafts have brass tubes and phosphor bronze bearings.

CODE #

DESCRIPTION

PRICE

EX-35

‘A’ FRAMES SHAFT SUPPORT & BEARING

EX-34

EXTERNAL THRUST COLLAR

EX-37

INTERMEDIATE SHAFT SUPPORT

EX-38

INTERNAL THRUST COLLAR

PROP SHAFTS

Brass tube with Phosphor Bronze Bearings. (EX-01 – EX15)

Stainless Steel Shaft with Nut & Washer.   (EX-19 – EX-33)

CODE #

TUBE LENGTH

SHAFT LENGTH

PRICE

EX-01

4”

EX-02

5”

EX-03

6”

EX-04

7”

EX-05

8”

EX-06

9”

EX-07

10”

EX-08

11”

EX-09

12”

EX-10

13”

EX-11

14”

EX-12

15”

EX-13

16”

EX-14

17”

EX-15

18”

EX-19

6”

EX-21

8”

EX-22

9”

EX-23

10”

EX-24

11”

EX-25

12”

EX-26

13”

EX-27

14”

EX-28

15”

EX-29

16”

EX-30

17”

EX-31

18”

EX-32

19”

EX-33

20”

PROPS FOR THRUSTERS & KORT NOZZLES

CODE #

DIAMETER

BLADES

PRICE

TH-01

1.5 - 2.0”

3

TH-02

2.0 – 2.5”

3

TH-03

2.5 – 3.0”

3

TH-04

1.5 – 2.0”

4

TH-05

2.0 – 2.5”

4

TH-06

2.5 – 3.0”

4

KORT NOZZLES

CODE #

INSIDE DIAMETER

INCHES

PRICE

KN-01

38 mm

1.5”

KN-02

44 mm

1.75”

KN-03

55 mm

2.17”

SUPPORTS – OIL POINT

CODE #

DESCRIPTION

SIZES

PRICE

AF-2

‘A’ FRAMES (A or B)

4mm or 5mm

TS-1

SHAPED TUBULAR SUPPORT

ANGLE ‘A’

SIL-1

OIL LUBRICATION POINT

4 mm or 5 mm

EX-34

EXTERNAL BRASS THRUST COLLAR & GRUB SCREW

4mm or 5 mm

EX-38

INTERNAL BRASS THRUST COLLAR & GRUB SCREW

4mm or 5 mm
